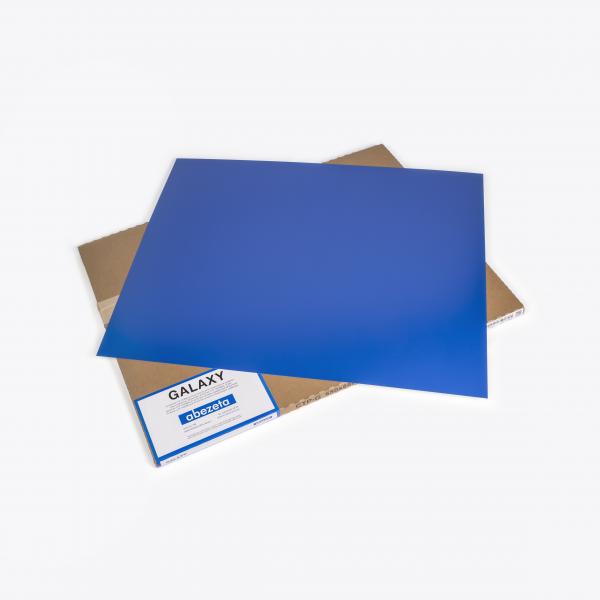

ABEZETA GALAXY

High chemical resistant thermal positive offset plate. The coating is sensitive to infrared diode laser (IR) at 800-850 nm. For long runs both standard and UV inks without post bake.



GAUGES

Standard: 0,15 – 0,30 – 0,40 mm.

On request: 0,20 – 0,25 mm.



COATING EXPOSURE

Coating color: Blue.

Contrast after developer: High.

Spectral sensitivity: 800-850 nm. With peak sensitivity at 830 nm.

Usable on all thermal plate setters with internal and external drum.

Energy required approx. 120-130 mJ/cm2.

Screen reproduction: 1% - 99% at 400 l.p.i.

Resolution: up to 3200 d.p.i. and 20 μm. stochastic screen.

Day light sensitivity – UV: Up to 1 hour with white light and up to 4 hours under yellow light.



DEVELOPMENT

Use ABEZETA ABCHA 8000 developer at the following parameters:

Bath temperature 23 ± 1ºC
Development time 25 ± 5 seconds
Replenishment ABCHA 8000 ABCHA 8000R
Replenishment rate 120 ml/m2 50 – 60 ml/m2
Anti-ox Stand by ON 100 ml/h 40 – 50 ml/h
Anti-ox Stand by OFF 100 ml/h 40 – 50 ml/h




GUMMING – PLATE CLEANER

Apply ABEZETA GUM ABCH-6970110 ready to use for long-term storage.
Apply ABEZETA GUM ABCH 6970310 ready to use for baking in oven.
Apply ABEZETA Plate Cleaner ABCH-69002 for ink removal and hydrophilic areas preparation.



BAKING

GALAXY plate allows to print standard and UV inks without post-baking.



ON PRESS

ABEZETA Fountain solution additives are suitable for sheet-fed and web presses.
Recommended pH range: 4,8 – 5,2.
Recommended Conductivity range: 800 – 1.500 μS.
Run-length: 300.000 – 400.000 impressions - Standard inks.
150.0000 – 200.000 impressions - UV inks.
Run-length can vary according to printing conditions, ink, paper and imaging content.



STORAGE CONDITIONS

Keep away from light and store in a dry and cool place.
Do not pile up more than 1.000 Kgs.
Storage temperature: Max. 30ºC.
Relative humidity (RH): Max. 65%.
Shelf life: 18 months from the production date.
