Corner Rounding Machine Tränklein EH 1

The different versions of corner rounding machines (corner cutters) are equipped with top and bottom knives as well as with top knives only. These machines can be used for corner rounding as well as for a number of other punching operations. Depending to the model of machine, the punching operation can either be effected manually or electrically with foot switch. On the models EK 100 and EK-D 100 the punching operation is controlled by an optoelectronic sensor fixed in the working table. When cutting large sizes, the use of an accessory table is recommended.

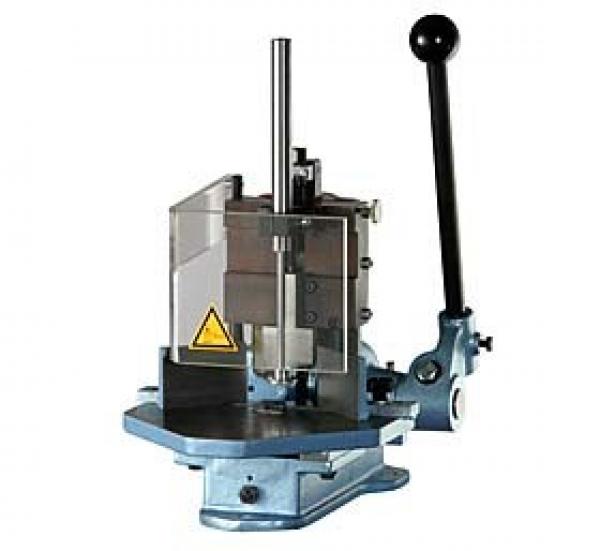

Corner Rounding Machine model EH I for corner rounding and for a number of other punching operations hand operated – with top and bottom knives.

Technical dates:

Pile height:

max. 55 mm


65 mm

Space requirement (L x W x H):

300 x 430 x 470 mm


net 32 kg

Size of table:

260 x 200 mm

Optional: table extension / size of table 280 x 400 mm
