Corner Rounding Machine Tränklein EK 100

The different versions of corner rounding machines (corner cutters) are equipped with top and bottom knives as well as with top knives only. These machines can be used for corner rounding as well as for a number of other punching operations. Depending to the model of machine, the punching operation can either be effected manually or electrically with foot switch. On the models EK 100 and EK-D 100 the punching operation is controlled by an optoelectronic sensor fixed in the working table. When cutting large sizes, the use of an accessory table is recommended.

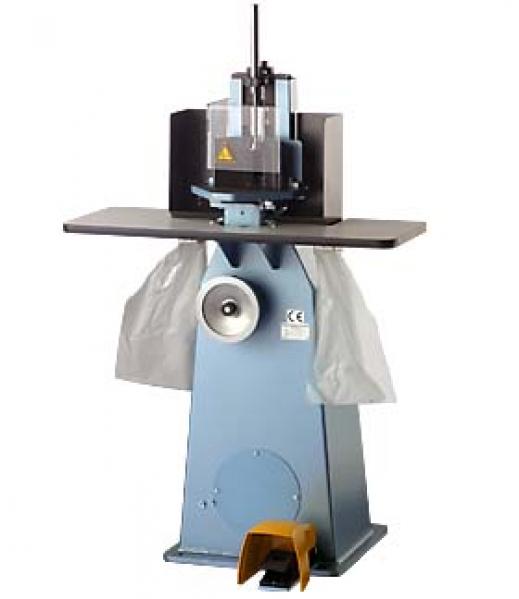

Corner Rounding Machine model EK 100 for corner rounding and for a number of other punching operations, power operated – with top and bottom knives.

Geared brake motor.

Technical dates:

Pile height:

max. 100 mm


110 mm

Space requirement (L x W x H):

800 x 900 x 1400 mm


net 130 kg

Size of table:

260 x 200 mm

Electrical equipment:

400 volts, 50 cycles, 3 ph., 0,55 kW

Optional: table extension / size of table 280 x 400 mm
