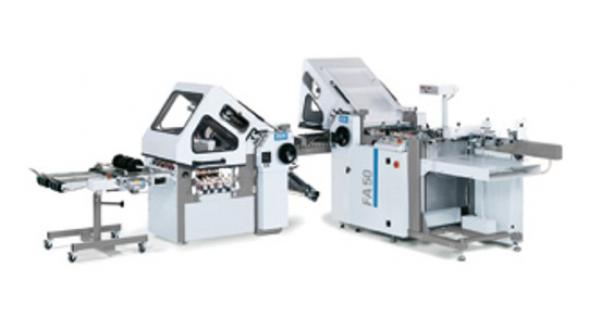

GUK FA 50

A perfect construction set system with latest technology

The high capacity folding machines for plane sheet formats 50 x 70cm. With 2 or 4 or 6 folding pockets per station. With knife folding unit EK 490.




Technical features:

  • Flat pile feeder with separating head therefore exact sheet separation
  • Continuously adjusment of sheet distance
  • Synchronous and noisless drive by harded, grinded and inclined toothed steel gears
  • Combined folding pockets with intergrated sheet shunts
  • Wear-resistant pocket infeeds and guide in harded execution

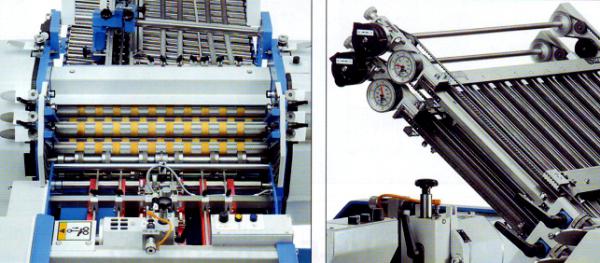

  • Combined folding rollers with changeable synthetic rings
  • Possibility of after-greasings for roller bearing
  • Knife shafts which can be sticked on
  • Electronically controlled folding knife with switch of delay
  • Knife folding unit for the third folding

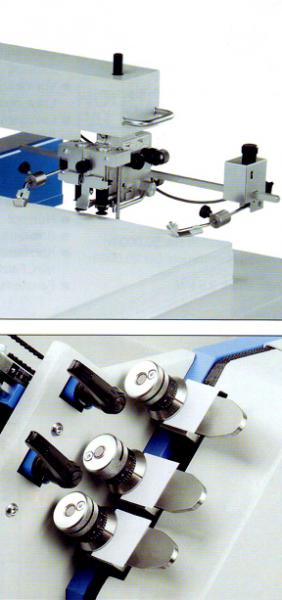

  • Folding pockets with indicator watch adjusment and fine adjusment
  • Roller setting automatic by paper strips
  • Mobile chute delivery
  • Pocket folding machine with intergrated knife folding unit. If desires, also without knife folding unit
  • Station I and II with 2 or 4 or 6 pockets
  • Min. format: 10,5x14,5cm
  • Max. format: 50x70cm (special excecution on demand)
  • Power required: 3,5 kW
  • Speed: 40 - 160m/min.
  • Output parallel up to 40.000/h, cross fold up to 20.000/h



Special accessoires:

  • Sound reduction device
  • Counter for continuous counting
  • Batch counter with indicator of performance
  • Glueing unit with electronical control
  • Pre-pile device
  • Air table-pre-pile device
  • Electronic double sheet detector
  • Mobile chute delivery S 520
  • Scoring head
  • Strip cutting device
  • Short folding device for min. width of 24mm
  • Pocket box
  • Gate folding pocket
  • Extended folding pocket I for folding length 560mm (normal is 457mm)
  • Crimping device
  • Deviating pocket electronically controlled
  • Vertical stacker KS 310 or KS 370 for smallest fold up to 26mm
  • Intermediate transport between roller 5 and 6 and knife shaft - for smallest fold up to 26mm
  • Additional blower device for extreme long and small sheets
