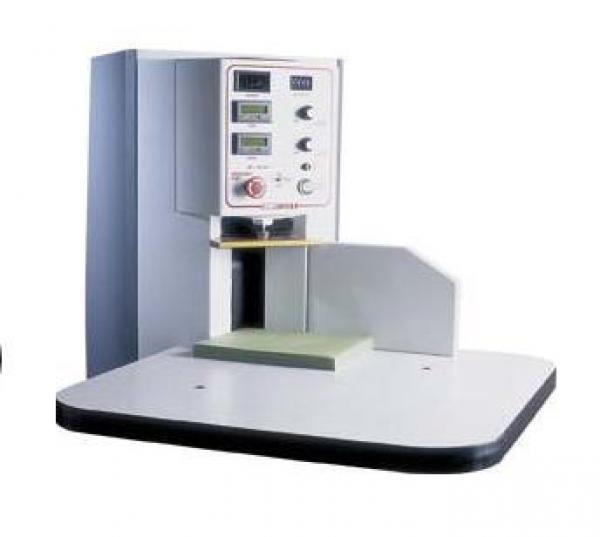

Sheet Counter & Batch Tabber Speed, Flexibility & Accuracy for High Volume Applications
STANDARD FEATURES
•Counting speeds up to 2500 CPM
•Tab insertion from 3 to 9999 sheets
•Easy installation
•One-button initiation
•Minimal maintenance requirements
•Modular construction
•Large electronic displays (LED)
•Six-digit totalizer
•Six-digit batch counter
•Plug-in components
•Solid State electronics
•Low tape warning indicator
•Readily available parts
APPLICATIONS
•Exact count deliveries
•Maximize efficiency
•Control quantity at every stage
•Fast, accurate tabbing
•Eliminate re-runs and miscounts
•Stop overages and shortages
•Improve customer satisfaction
•Eliminate quantity disputes
•Provide competitive quotes
•Check incoming supplies
SPECIFICATIONS
Net Weight ............................................202 lbs (92 Kg)
Height........................................................31.5" (80 cm)
Width ........................................................34.5" (88 cm)
Depth..........................................................52" (132 cm)
Throat Height ................................................8" (20 cm)
Table Size ............................28" x 28" (71 cm x 71 cm)
Sheet Size Maximum ......27" x 27" (68.5 cm x 68.5 cm)
Sheet Size Minimum ..........2.25" x 4" (5.7 cm x 10 cm)
Paper Range ............14 lb bond up to .010 cover stock
(25 g/m 2 up to 250 g/m 2)
Dependent upon paper substance & flexibility
Electrical ......120V AC, 10A or 220/240V AC, 50/60 Hz
