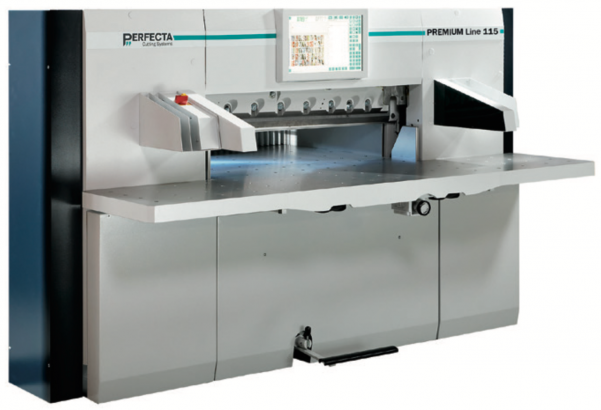

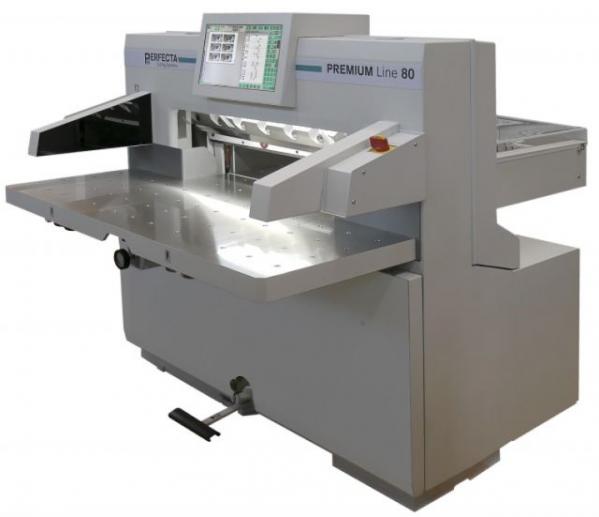

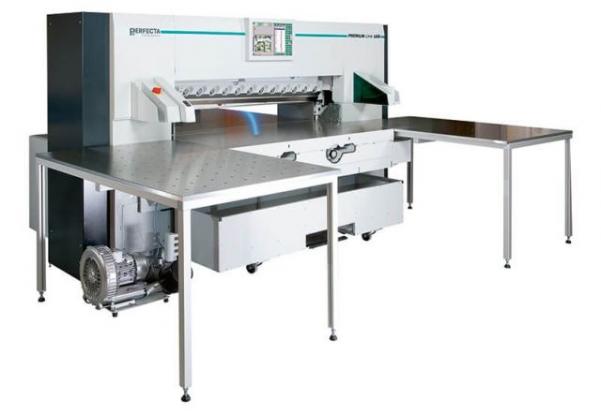

Cutting machines Perfecta Premium Line series

Cutting machines Perfecta series Premium Line are a comprehensive solution to join cutter and peripheral machines as a cutting lines to placed them in production cycle.

Technical data of Perfecta Premium Line series:

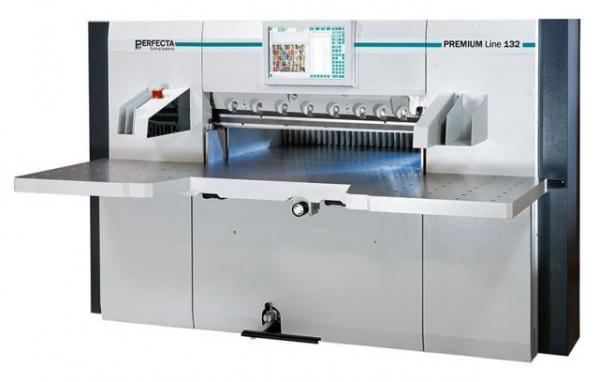

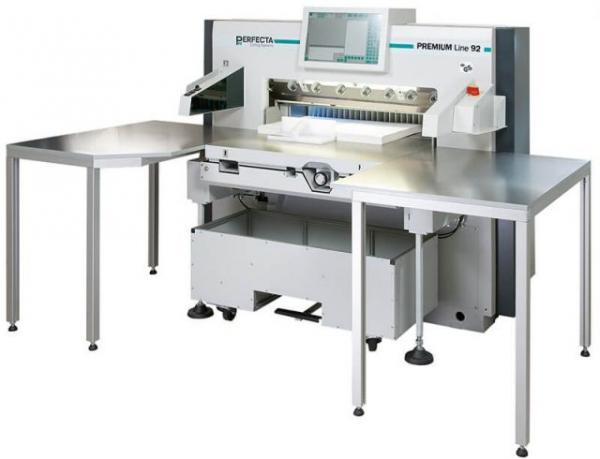

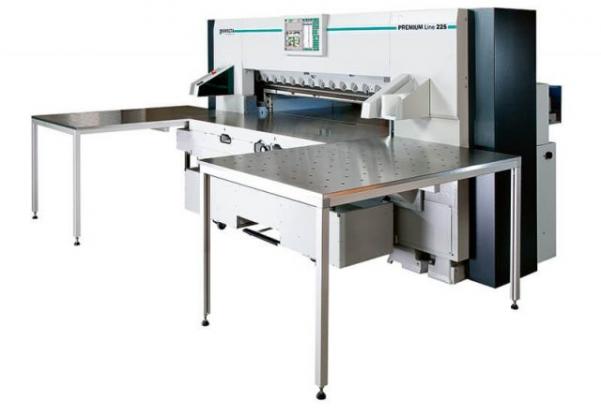

Perfecta Premium Line	78	92	115	132	168	225
Cutting table width	800 mm	920 mm	1150 mm	1320 mm	1680 mm	2250 mm
Cutting table height	900 mm	870 mm	870 mm	870 mm	870 mm	890 mm
Maximum clamp opening	130 mm	120 mm	165 mm	165 mm	165 mm	165 mm
Useful rear table length	800 mm	920 mm	1150 mm	1320 mm	1680 mm	2700 mm
Smallest cut with false clamp	80 mm	57 mm	77 mm	77 mm	77 mm	110 mm
Smallest cut	20 mm	18 mm	20 mm	20 mm	26 mm	no false clamp available
Backgauge return speed	300 m/s	300 m/s	300 mm/s	300 mm/s	300 mm/s	2000 mm/s
Knife cycle rate	45 cuts/min	50 cuts/min	44 cuts/min	44 cuts/min	44 cuts/min	34 cuts/min

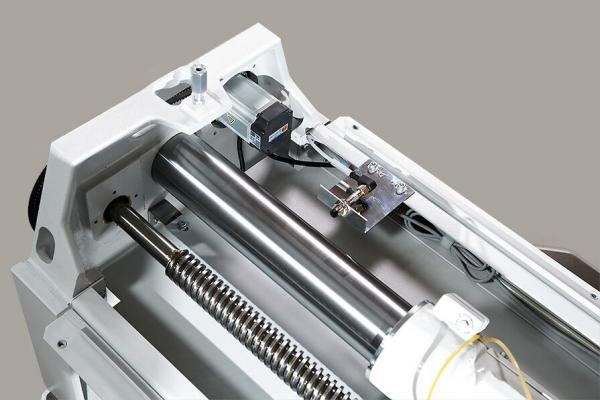

Backgauge guidance	both-mounted	side-mounted	top-mounted	top-mounted	top-mounted	side-mounted
Main drive power	4 kW	4 kW	4 kW	4 kW	7,5 kW	10 kW
Weight	2150 kg	2000 kg	3200 kg	3410 kg	6900 kg	8000 kg
