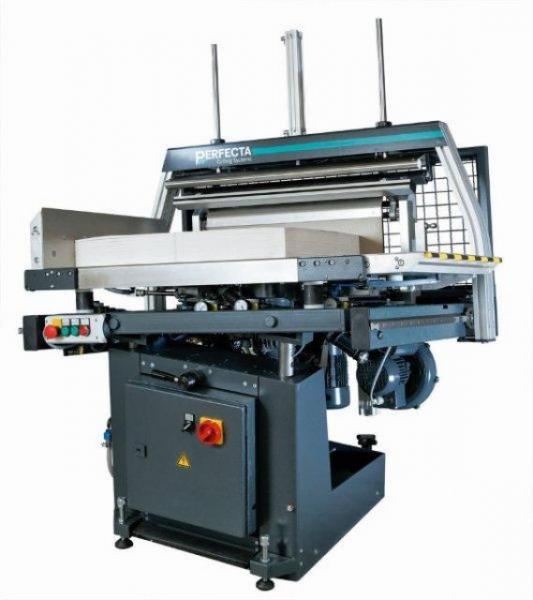

Automatic Jogger Perfecta BSB (2-10)L

This automatic jogger guarantees exact alignment of the reams to be cut. Its table can be brought into an inclined position and raised up to the working height by a motor offers you best operational performance. Depending on the model, the side flap can be tilted manually or by air. This automatic jogger from PERFECTA can be brought into a right-hand or left-hand position adjustable in steps. According to what the jogger is equipped with, you can individually and infinitely variably match the jogging intensity and the speed of the air expulsion roller.




 Technical data

Perfecta model

BSB 2L

BSB 3L

BSB 5L

 BSB 6L

BSB 7L

BSB 8L

BSB 10L

Max. paper format

640 x 920 mm

800 x 1140 mm

900 x 1300 mm

1050 x
1450  mm

1250 x 1650 mm

1320 x 1850 mm

1525 x
2050  mm

Max. layer height

120 mm

160 mm

160 mm

160 mm

160 mm

160 mm

160 mm

Connected load

2 kVA

3,5kVA

3,5 kVA

3,5 kVA

4,5kVA

4,5 kVA

4,5 kVA

Air demand

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

6 bar

Air consumption

12 l/min

12 l/min

12 l/min

14 l/min

17 l/min

17 l/min

17l/min
