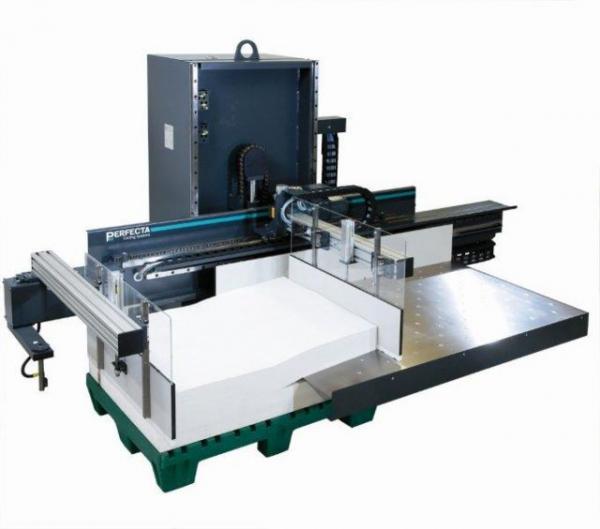

The PERFECTA unloaders – located either on the right or left of the high-speed cutter – facilitate rapid unloading of the finished reams during the cutting process. They guarantee high stacking quality, which is necessary for direct further processing in printing and folding, and save time and force. Automatic format adjustment ensures easy handling. This unloader stands out for ensuring solid processing of high-grade materials and for having a clearly arranged control panel.
Technical data
|
model |
BA 3 |
BA 5 |
BA 6 |
BA 7 |
BA 8 |
BA 10 |
|
Max. paper format* |
800 x 1200 mm |
920 x 1300 mm |
1050 x 1450 mm |
1250 x 1650 mm |
1320 x 1820 mm |
1525 x 2050 mm |
|
Max. layer height |
160 mm |
160 mm |
160 mm |
160 mm |
160 mm |
160 mm |
|
Max. pile height incl.pallet |
1800 mm |
1800 mm |
1800 mm |
1800 mm |
1800 mm |
1800 mm |
|
Max. layer weight |
150 kg |
200 kg |
300 kg |
300 kg |
300 kg |
500 kg |
|
Min. pallet height |
130 mm |
130 mm |
130 mm |
130 mm |
130 mm |
130 mm |
|
Connected load |
7 kVA |
7 kVA |
8 kVA |
8 kVA |
9 kVA |
9 kVA |
|
Air demand |
6 bar |
6 bar |
6 bar |
6 bar |
6 bar |
6 bar |
|
Air consumption |
4 l/min |
4 l/min |
5 l/min |
5 l/min |
5 l/min |
5 l/min |
*The dimension refers to max. pallet format
