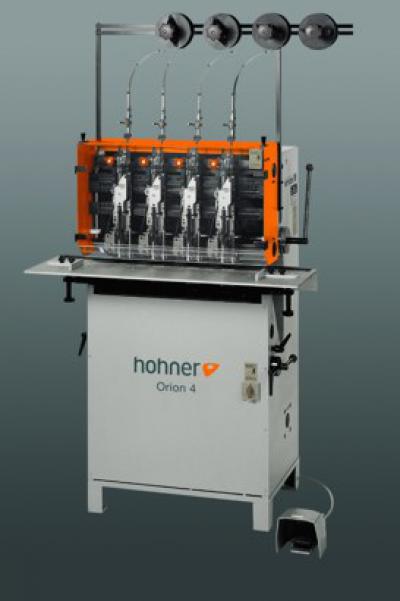

Hohner ORION 4 Multi Head Pad and Folder Wire Stitching Machine

Motor-drive for 400 Volts or for 230 Volts, 3-ph. A.C., 50/60 cycles.

Up to 4 HOHNER stitching heads UNIVERSAL 70/20, stitching thickness up to 20 mm can be installed.

The flexible big one

This all-rounder wire stitching machine demonstrates its strengths with:

  • A solid construction - specially designed multiple head stitching machine for handling thick pads.
  • The flexibility to install up to four HOHNER UNIVERSAL 70/20 stitching heads for stitching thicknesses of 0-20 mm with our patented Cutting System?
  • Equally suitable as a stand-alone machine or for completion of a whole system, as well as for special constructions
  • Fast and easy table adjustment from pad stitching (flat) to brochures (saddle)
  • The possibility of unusual staple positioning due to the throat depth of approx. 230 mm from clincher box (e.g. calendar production)
  • Subsequent purchase of stitching heads at any time
  • Simultaneous central adjustment of stitching thickness and wire length of all heads with only one lever
  • A backstop and two side lays are fully adjustable for accurate and easy positioning of the staples.
  • Extremely easy for the operator to change from one format to another.
  • Conversion option to loop stitching
  • Maximum stitching per head: 192 staples per minute
  • Table size from 1000 x 330 mm
