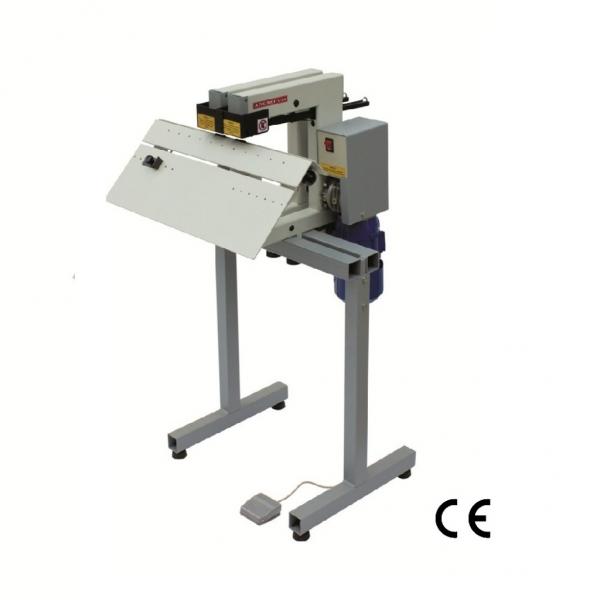

ANGRO x-14, 1-head; ANGRO x-14, 2 -heads stitching machine. Both versions: expandable up to 4 heads.
Purpose: Stitching booklets with standard and loop staples. Also for stapling blocks.
Standard equipment: up to 50 sheets of papers 80g/m2; with optional equipment up to 100 sheets of paper.

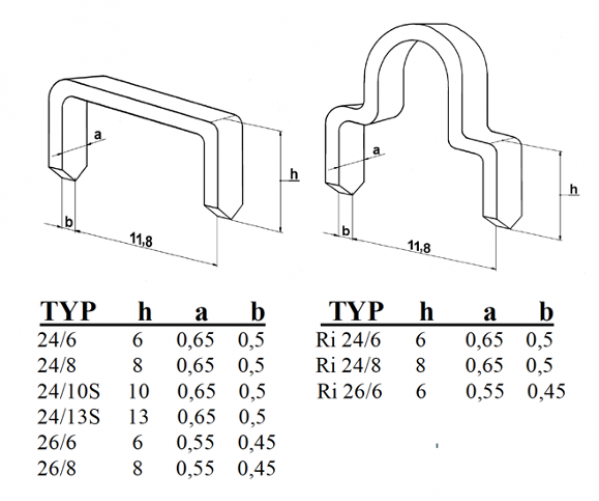

Staples type:
Standard staples: 24/6, 24/8, 24/10S, 24/13S, 26/6, 9/12, 9/14
Loop-eye staples: 24/6, 24/8, 26/6, 66/6
Recommended staples: NAGEL or RAPID
|
Main drive: |
Electric Motor / 0,18kW |
|
|
Power supply: |
230 V / 50 Hz |
|
|
Noise: |
<70 dB(A) |
|
|
Dimensions and weght: |
540 x 535 x 930 mm / 30 kg (2-head model) |
|
|
Paper feeding: |
Manual |
|
|
Cycle start: |
By foot pedal |
|
|
Speed: |
93 cycles /mi |
|
|
Staples tray capacity: |
300 staples type „24” / 400 staples type „26” |
|
|
Booklet max size: |
A3 booklet (when unfolded A2 + 10mm) |
|
|
Block stitching staple distance from paper edge: |
23 mm standard / 215 mm optional |
|
|
Distance between staples (axis): |
min.: 48 mm / max.: 245 mm (2-head model) |
|
|

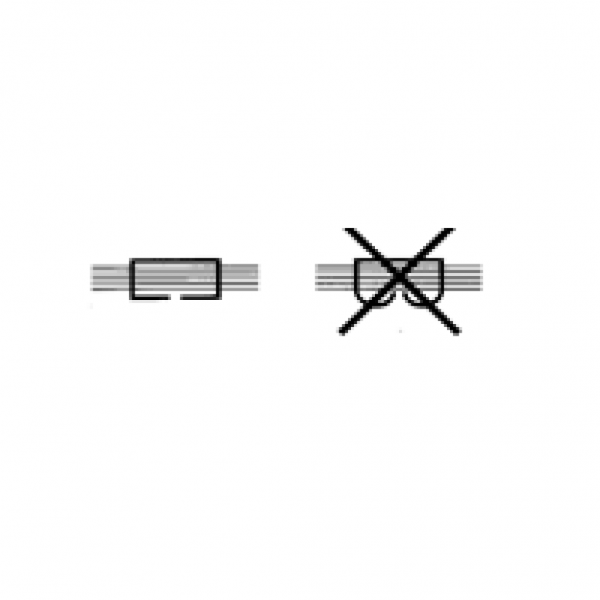

Staple closing quality: |
Flat |
See images for details |
|
Does not require adjustments when changing the thickness of booklet. |
||
|
No additional equipment for loop-eye stitching required. |
||
