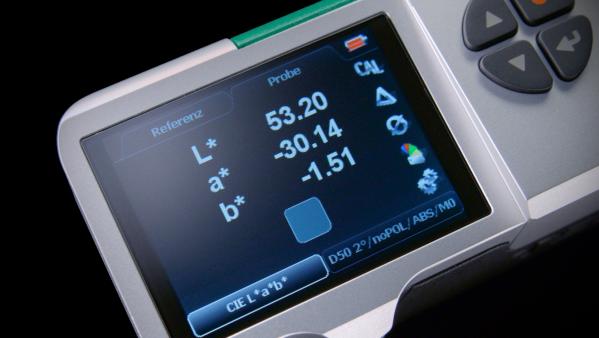

Spektrodensytometr Techkon SpectroDens

SpectroDens is your all-purpose, modern measurement device for every application from pre-press to print. Whether it be in pre-print for verifying proofs, for ongoing quality control at the printing press, during delivery inspection of paper and print products or in a color lab, SpectroDens is exceptionally suitable, no matter which application.

It combines the qualities of a highly accurate spectophotometer and an easy-to-use densitometer. Measurement is spectral, i.e. the entire color information – the spectral fingerprint of the color – is precisely registered. The data is converted into measurement data for descriptive analysis and display.

Specifications:

·       Spectral remission measurement and color density determination to ISO 5-3/4

·       Measurement geometry 0/45° optics to DIN 5033

·       Spectral range: 400 to 700 nm in 10 nm steps

·       Light source LED, provides measurement conditions M0, M1, M2, M3 according to ISO 13655

·       Measurement aperture 3 mm round standard; 1.5 mm round optional

·       Polarization filter Twice linear crossed, switched on and off per button release

·       Illumin. types / Standard observer: A, C, D50, D65, F 2/7/11 / 2°, 10°

·       Density filter: DIN 16536, DIN 16536 NB, ISO/ANSI T, ISO/ANSI I, ISO E;

·       Density measurement range:  0.00 – 2.50 D

·       Repeatability: 0.01 D; 0.03 CIE ∆E*a*b*

·       Inter-instrument agreement: 0.01 D; 0.3 CIE ∆E*a*b*

·       Display: Color LC backlight display, 320 x 240 pixels

·       Power supply: Rechargeable LiFePO4 battery, regulated recharge via charging console with AC adapter, 100 – 240 V, 47 – 63 Hz,

·       Communication port: USB; WLAN module optional

·       Weight: 495 grams

·       Dimensions: 62 x 50 x 185 mm

·       System requirements for TECHKON software: Windows 7, 8 or 10; 32- and 64-bit, minimum: IBM-compatible PC with Intel Core Duo processor or comparable processor, 4 GB RAM, 2 USB ports
