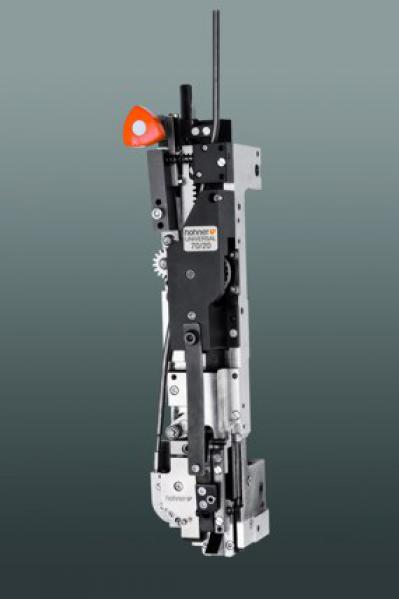

UNIVERSAL STITCHING HEAD 70/20

Head for standard or loop stitching



With its two-stroke operation this stitching head fits on automatic bindery flow stations and on machines where the volumes are high and demanding.

  • Well arranged with operator friendly and very fast central adjustment of stitching thickness and wire length
  • Stitching thicknesses from 2 sheets to 20 mm
  • Toolless wire adjustment
  • Patented cutting system for optimum wire cutting, for thick and hard print products

Universal stitching

• max. booklet thickness: 20 mm
• min. staple spacing depending on the thickness of the booklet:

0 – 3 mm = 70 mm
5 mm = 72 mm
10 mm = 80 mm
15 mm = 90 mm
20 mm = 100 mm

• length of the staple spine 14 mm
• processing without replacing parts:



for round wire

Nr. 24 - 30 (0.60 - 0.35 mm dia.)
for flat wire
Nr. I - III (0.70 x 0.35 - 0.75 x 0.55 mm)
• serial exchange parts for round wire
Nr. 21 - 24 (0.80 - 0.60 mm dia.)
and flat wire
Nr. III - VI (0.75 x 0.55 - 0.96 x 0.78 mm)



Loop stitching



• optional spare parts for loop stitching
• max. booklet thickness: 4 mm
• min. spacing staples, depending on the thickness of the booklet:

0 2 mm = 70 mm
4 mm = 75 mm
Inner diameter of loop 6 mm
for round wire
Nr. 24 - 26 (0.60 - 0.50 mm dia.)
• optional exchange parts for standard stitching with staples with spine length of 16 mm
• max. booklet thickness: 12 mm
for round wire
Nr. 24 - 28 (0.60 - 0.40 mm dia.)
or alternatively
Nr. 21 - 23 (0.80 - 0.70 mm dia.)
