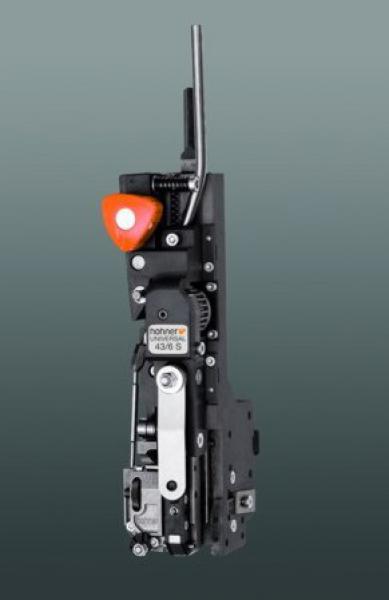

UNIVERSAL STITCHING HEAD 43/6

  • Operator friendliness, manageability & accessibility (for example fastening from the front)
  • Toolless wire length and cutting box adjustment for different thicknessess in seconds
  • Extremely easy conversion between standard and loop stitching with exchange parts sets
  • 14.000 stitches per hour
  • Minimum distance between stitch centres down to 43 mm
  • Now more wear resistant with redesigned parts

UNIVERSAL 43/6 – standard stitching

• max. booklet thickness 6 mm
• min. spacing between staples 43 - 55 mm (depending on the thickness of the booklet)
• length of the staple spine: 12 mm for the round wire

Nr. 24 - 26 (0.60 - 0.50 mm dia.)
or alternatively
Nr. 26 - 28 (0.50 - 0.40 mm dia.)
Optional exchange parts for loop stitching
for round wire
Nr. 24 - 26 (0.60 - 0.50 mm dia.)

UNIVERSAL 43/6 – loop stitching

• max. booklet thickness: 3 mm
• min. spacing staples between 48 - 54 mm (depending on the thickness of the booklet)
• inner diameter of loop: 6 mm

for round wire
Nr. 24 - 26 (0.60 - 0.50 mm dia.)
optional exchange parts for standard stitching
for round wire
Nr. 24 - 26 (0.60 - 0.50 mm dia.)
or alternatively
Nr. 26 - 28 (0.50 - 0.40 mm dia.)
