Year of manufacture: 2010

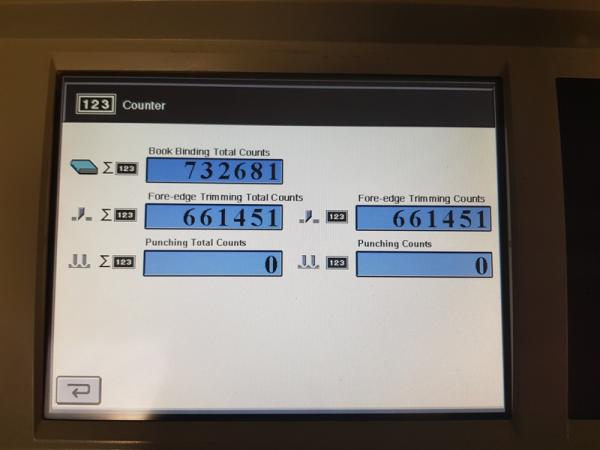

Counter: ca. 100 000 booklets
Ref.:KB092114
The line consists of:

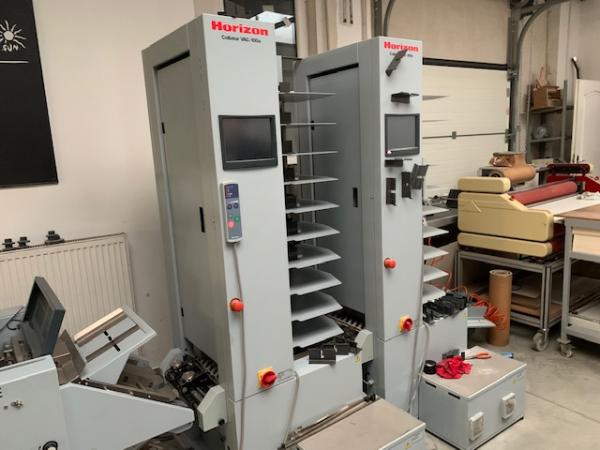

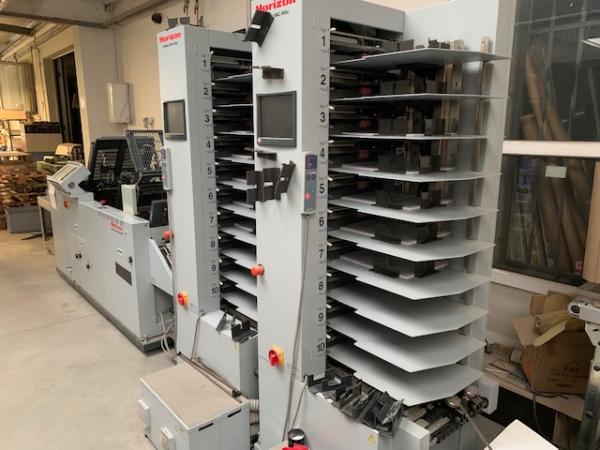

Horizon VAC-100a + VAC-100c
Air-suction collating
Max format: 350 x 500 mm
Min format: 120 x 148 mm
10 bins each
Pile height: 55 mm
Paper weight: 40-270 g
Power: 230 V; 50/60Hz - 1,86 kW
Weight: 310 kg/each
Horizon IFU-200
Infeed Unit

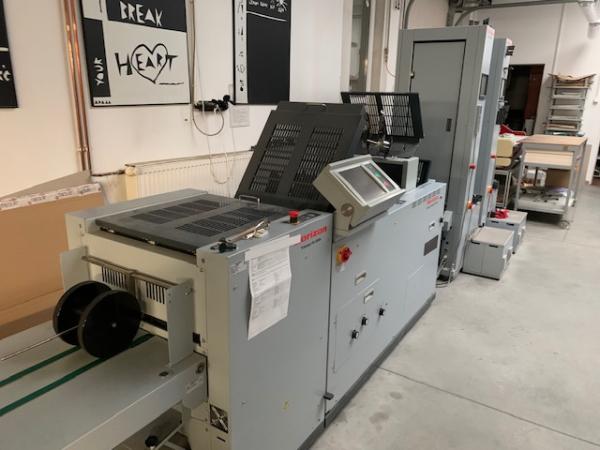

Horizon SPF-200A
Stitcher and folder
2 flat stitching heads + 2 ring eyelet stitching heads
Max format: max. 508 x 356 mm;
Min format: 180 x 120 mm
Max production speed: 4500 booklets/h
Power: 230V / 50Hz - 0,68 kW
Weight: 500 kg
Horizon FC-200A
Fore-edge trimmer
Booklet size: max 250 x 20 mm, min 85 mm
Trimming thickness: max 100 pages (80 g/sqm), min 4 pages
Max production speed: 4000 booklets/h
Power: 230V / 50Hz - 0,55 kW
Weight: 245 kg
Horizon LC-200
Long Conveyor
Tools, spare elements, books
Still in production, work test possible
Available immediately
Very good technical condition
