Ref: MM022324
Year of production: 2015
Manufacturer: Schneider Senator SSB GmbH
Machine availability – on request;
Machine in use; possibility to carry out work tests during inspections;

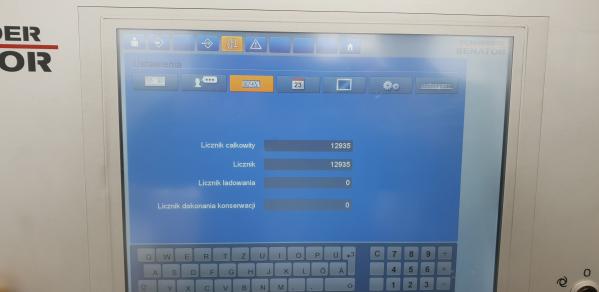

Good technical condition; Very low usage – 12,935 cuts only.
CE marked machine;
Two knives;
A set of tools and accessories.
|
Cutting width: |
920 mm |
|
Clamp opening: |
120 mm |
|
Throat depth: |
920 mm |
|
Cutting table height: |
900 mm |
|
Smallest cut without/with falce clamp: |
25 mm / 80 mm without pressure beam bar |
|
Power consumption: |
5,5 kW |
|
Supply voltage: |
400 V, 3 AC, 50 Hz |
|
Nom. current: |
15 A |
|
Weight: |
1.600 kg |
|
Clamping force: |
180 - 3.000 daN |
|
Knife thickness: |
12 mm |
|
Maximum saddle speed: |
225 mm/s |
|
Required floor carrying capacity: |
450 daN/m² |
|
Ground contact carrying capacity: |
1.1 daN/cm² |

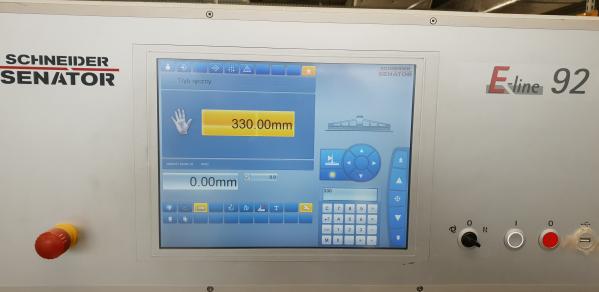

Computer control in E-Line version with 15" touch color screen;
6000 steps memory capacity;
"full automatic" cutting function without having to trigger each cycle manually;
(the cutter automatically lowers the clamp, makes cuts and driveways);

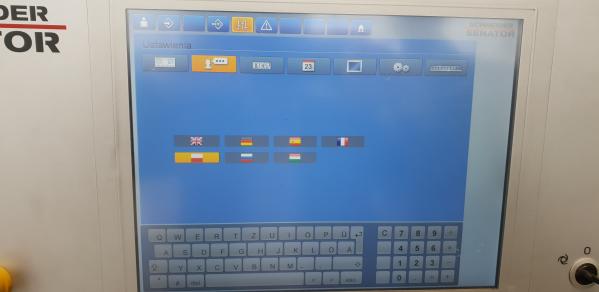

Menu in Polish;
Hydraulic clamping system infinitely adjustable;
Direct, mechanical drive of the knife beam (implemented by a gearbox and knife beam rod –
- no clutch and flywheel required);
Servo drive and lateral guidance with a rolling lead screw – an indestructible solution;

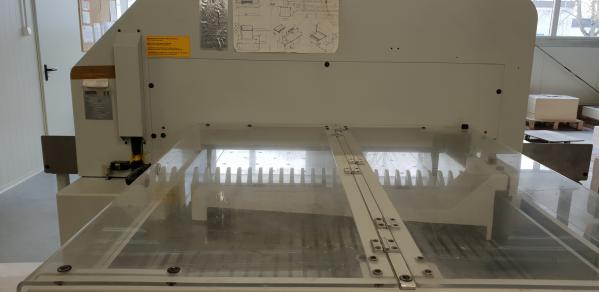

Saddle drive cover and plexiglass rear table cover;
Openable saddle guard with safety;
Tables with air bed and stainless steel cover;
LST 750 enlarged side tables - both 750 x 750 mm.
