Perfecta 115 TS Cutting Machine (2010) TK111920

Reference no.: TK111920

Year of Production: 2010

Excellent technical and visual condition!

Machine checked and cleaned by PERFECTA's authorized service.

Availability: Week 49, 2019

Location: Warsaw, Poland



Parametry techniczne:

Cutting width: 1150 mm
Max pile height: 165 mm
Rear table length: 1150 mm
Smallest cut (with false clamp): 77 mm
Smallest cut (without false clamp): 20 mm
Backgauge return speed: 300 mm/s
Clamping Force: 2,5 - 45 kN
Main Drive Power: 4 kW
Electrical Connection: 400 V, 3P+N+E, 50 Hz, 10,5 A
Weight: approx. 3.200 kg



Konfiguracja:

  • TS computer control

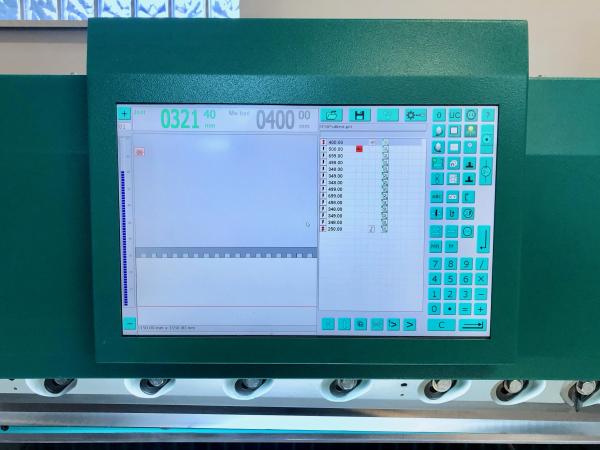

    • 19" Touch Screen
    • Multiple Languages
    • Clearly understandable symbols make the machine easy and intuitively to operate
    • Automatic cutting programs generation
    • Sterowanie siłą docisku tłoka z programu
    • CIP 3
  • Cast Iron Machine Frame
  • Servo backgauge drive
  • Accuracy of cutting 0,01 mm
  • Enlarged 620x820 mm cast-iron side tables with stainless steel cover
  • Air tables
  • The slotless PERFECTA cutting table facilitates gentle stock handling and prevents paper dust or debris building up in the mechanical system. Its cladded surface of corrosion-free stainless steel protects the machine from wear and damage.
  • Double self-testing of clamping pressure settings or light guard reliability in the safety computer guarantees a safe workflow.
  • CE and GS marks.
