GUK FA 50/6-6 FL2-50 Folding machine (2005) MM052323

Ask for price

Ref.: MM052323

Year of production: 2005

Manufacturer: GUK-Falzmaschinen Griesser & Kunzmann GmbH & Co. KG


Machine availability – on request;

Machine in use; possibility to carry out work tests during inspections;

Good technical condition;

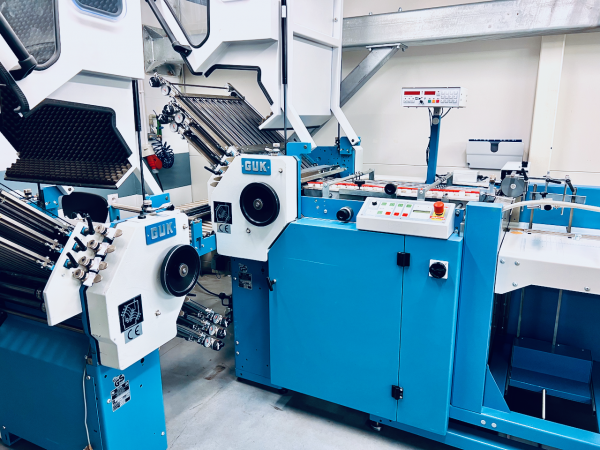

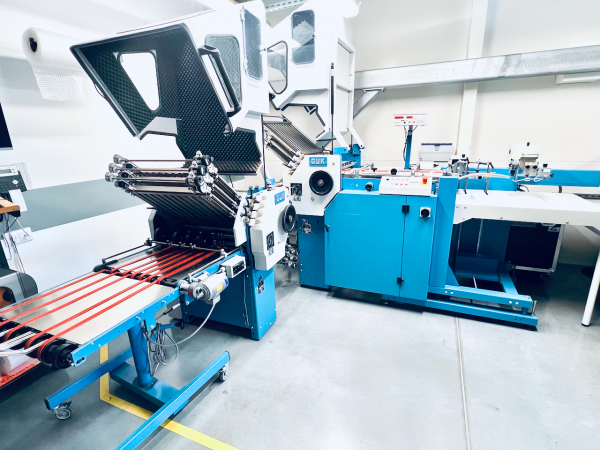

Folding machine manufactured by the renowned German company GUK equipped with a high pile feeder (sheet picking with a suction roller from above) FL2-50, 2 folding pockets aggregates, pocket with maximum working widths of 50 cm and mobile chute delivery.


Folding machine GUK model FA 50/6-6 FL2-50 – infeed width 500 mm (6+6 folding pockets).

Maximum input format:

500 x 850 mm

Minimum input format:

105 x 145 mm

Minimum folding length:

45 mm

Feed rate of sheets from feeder:

40 - 180 m/min

Maximum performance:

27.000/from sheet A4

Power supply:

400 V/50 Hz



Machine equipment:


  1. High pile feeder FL2-50;

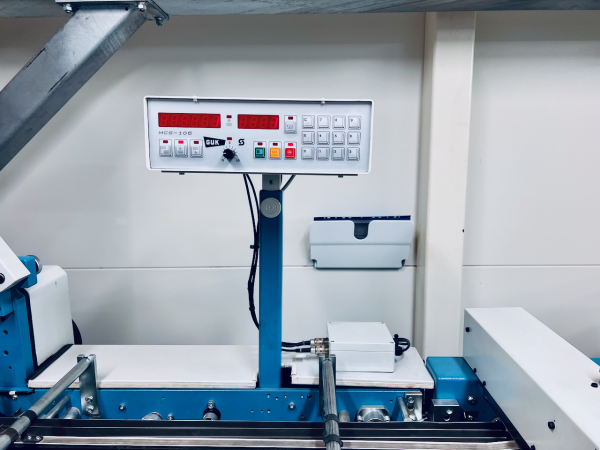

  2. Batch counter. Multifunction counter programming the operation of the machine. Ability to fold sheets in groups (lots) of the given number in each lot, with stepless adjustment of the spacing between parties.

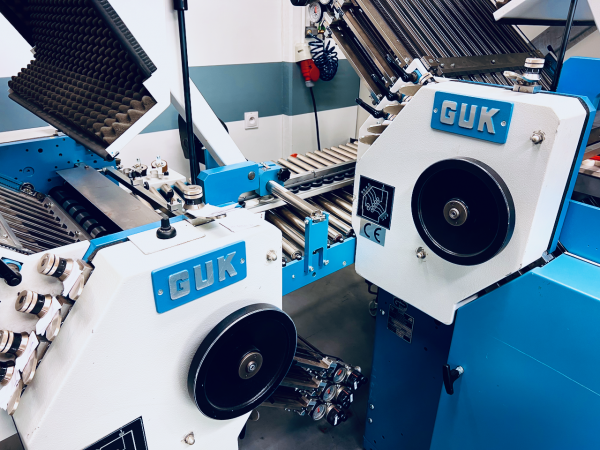

  1. I. folding unit FA 50/6, 6 folding pockets;
  2. Sound reduction hood, top.
  3. II. folding unit FA 50/6, 6 folding pockets
  4. Sound reduction hood, top.

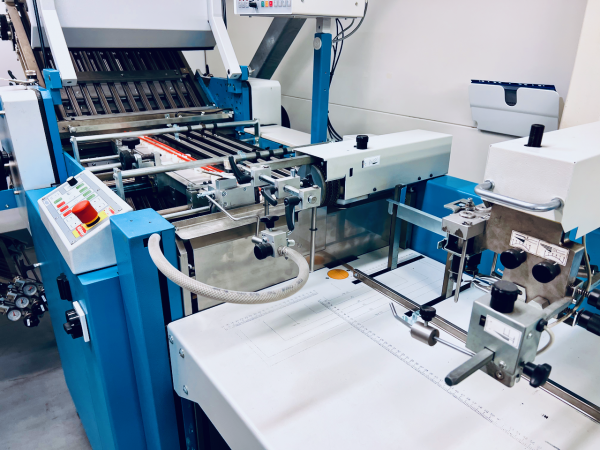

  5. Mobile chute delivery S 520. To be added after I or II folding station.
