GUK FA53-MV11 systems

TECHNICS

The new combination of folding machines for the patented RTA-Outserts, Z-Cards, booklets, etc.
Folding unit 1 with 12, 14, 16, 18, 20 or 24 folding pockets, T-station with 2 or 4 pockets and parallel knife system, MV 11(only for RTA-Outserts)

Outserts secured with one or more non-permanent glue dots can be excellent processed on high-capacity packaging lines. Such outserts are very compact and of small final size and can be attached directly on the bottle or can of pills and do not need any folded housing box or are combined with the final product to fit into a folded housing box.

FUNCTIONS – MV 11

By means of one HMI-touch control you can adjust the whole MV-processing line with the folding knives, presses and vertical stacker. It controls the production flow like speed, side lay, counter and passage control. Available as single-, double-, or triple knife system. Special pressing after every knife folding mechanism.


NOTES

  • Automatic double sheet detection with ejector device separates the sheets in case of a fault.
  • Non-rosty combined fold rollers
  • Water grooving for zero-potential final products (opt.)
  • Sheet detection through two-sided camera reading at the infeed (opt.)
  • Automatic roller setup by means of paper stripes in Station 1
  • Combined folding plates with digital display
  • Servo-controlled knife folding mechanism (MV11 single/ double/ triple)
  • Optical product testing with dimensions check (opt.)
  • QM-Modul for quality check and measuring on the final product with ejection device



FEEDER
Available with either R6 round pile
or FL3 flat pile feeder.


ROUND PILE FEEDER
The continuous feeder can deliver sheets up to 144 cm of length. The built-in suction roller is equipped with adjustable suction parts.


COMBINATION FOLDING POCKETS
Brand new combination folding pockets with position indicator, integrated sheet deflector and ultra-fine adjustment. Integrated pocket stops. No wear, no static electrification.


FOLDING KNIVES
Especially designed for producing thick inserts, outserts and for high output when running at the highest folding speed.


WATER SCORING
Prevents the cracking of the products’ back while folding multiple times. Minimal and precise application by electronically controlled water jets.


PRESSES
Flat and compact packing of the outsert for best quality and adhesion after closing with special press and integrated glueing.


CONTROL UNITS
HHS-XCAM controls the water grooving, code reading and ejection device functions. The GUK-main control L4 with touch screen display controls all functions at the feeder, Station I and II. With passage control fold monitoring and ejection of double sheets.


NEW TECHNOLGY LEADS TO LESS THICK AND REAL FLAT PRODUCTS


Ensure decisive advantages of the MV 11 knife folding mechanism. Save up to 25% of space by less thicker and flat products of excellent quality. They ensure even a better system performance. Increasing sheet formats are still reduced to unchanged end-formats.

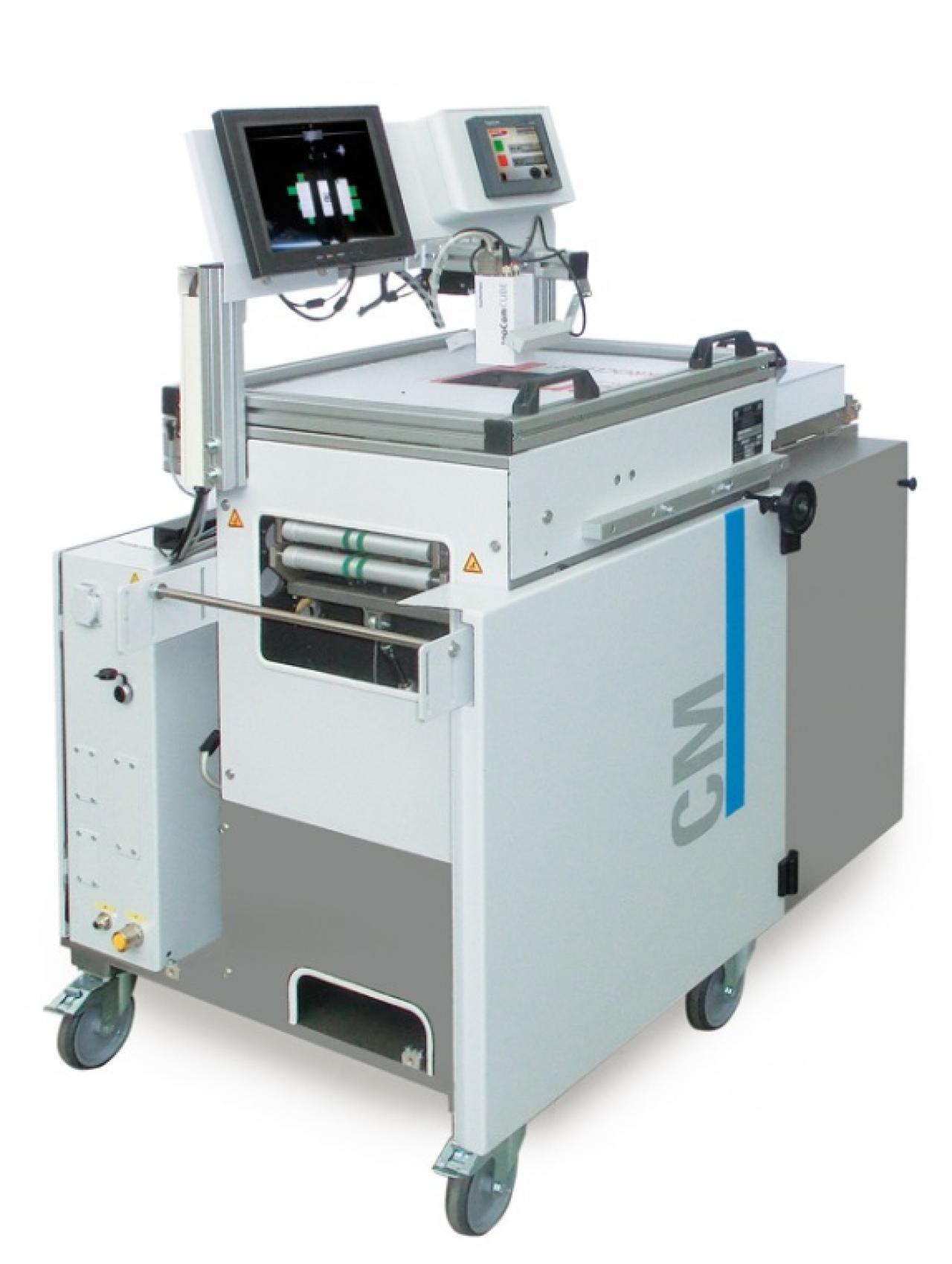

CM Camera Module



Exclusively for the MV11 systems (opt.) Check and control optical product measuring and quality!
