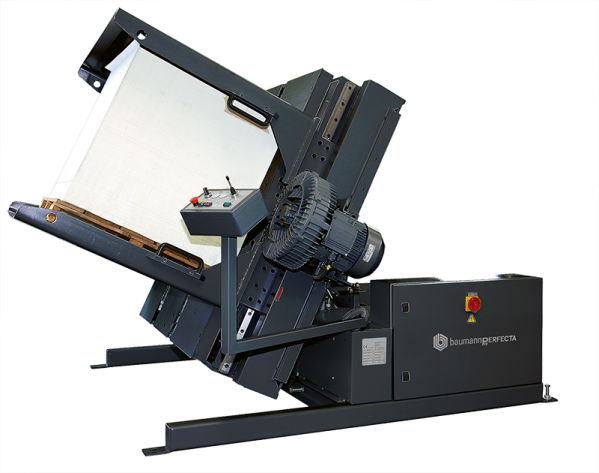

Semi-automatic processes make the PERFECTA pile turner very easy to operate. During the turning process, the stock is aerated by large powerful nozzles that can be closed for small formats. Depending on specification, the pile turner has an adjustable alignment stop. By the use of this peripheral unit, the stock will be prepared to subsequent production processes in a gentle and effortless way.
Technical data
|
model |
BSW 2-500 |
BSW 3-1000 |
BSW 3-1200 |
BSW 6-1500 |
BSW 7-1800 |
|
Min. sheet format |
350 x 350 mm |
500 x 650 mm |
500 x 650 mm |
700 x 1000 mm |
700 x 1000 mm |
|
Max. sheet format |
550 x 750 mm |
800 x 1200 mm |
800 x 1200 mm |
1050 x 1450 mm |
1200 x 1650 mm |
|
Min. pile height |
470 mm |
630 mm |
790 mm |
720 mm |
800 mm |
|
Max. pile height |
1220 mm |
1450 mm |
2010mm |
2020 mm |
2020 mm |
|
Max. pile weight |
500 kg |
1000 kg |
1200 kg |
1500 kg |
1800 kg |
|
Version BSW… |
x |
x |
x |
- |
- |
|
Version BSW….L |
x |
x |
x |
- |
- |
|
Version BSW...LV |
x |
x |
x |
- |
- |
|
Version BSW...LV (D) |
- |
- |
- |
x |
x |
|
Version BSW...(D) |
- |
- |
- |
x |
x |
